How to Set Up and Run a Moderated Study

Modified on Fri, 28 Mar at 6:03 PM

This guide will walk you through how to set up and run a moderated study in MUiQ.


To set up and run a moderated study on MUiQ, you can utilize the platform's MUiQ Moderated (Mod) feature. This feature is designed for one-on-one or multi-session usability research with live participant video chats, screen sharing, hidden observers, and automated recordings and transcripts.


Here’s a guide on how to set up and run a Moderated study:


  1. Create a Moderated Study:
    1. From your MUiQ dashboard, select "Mod Studies" to view your dashboard. You can then select Create Study to build a new moderated study.

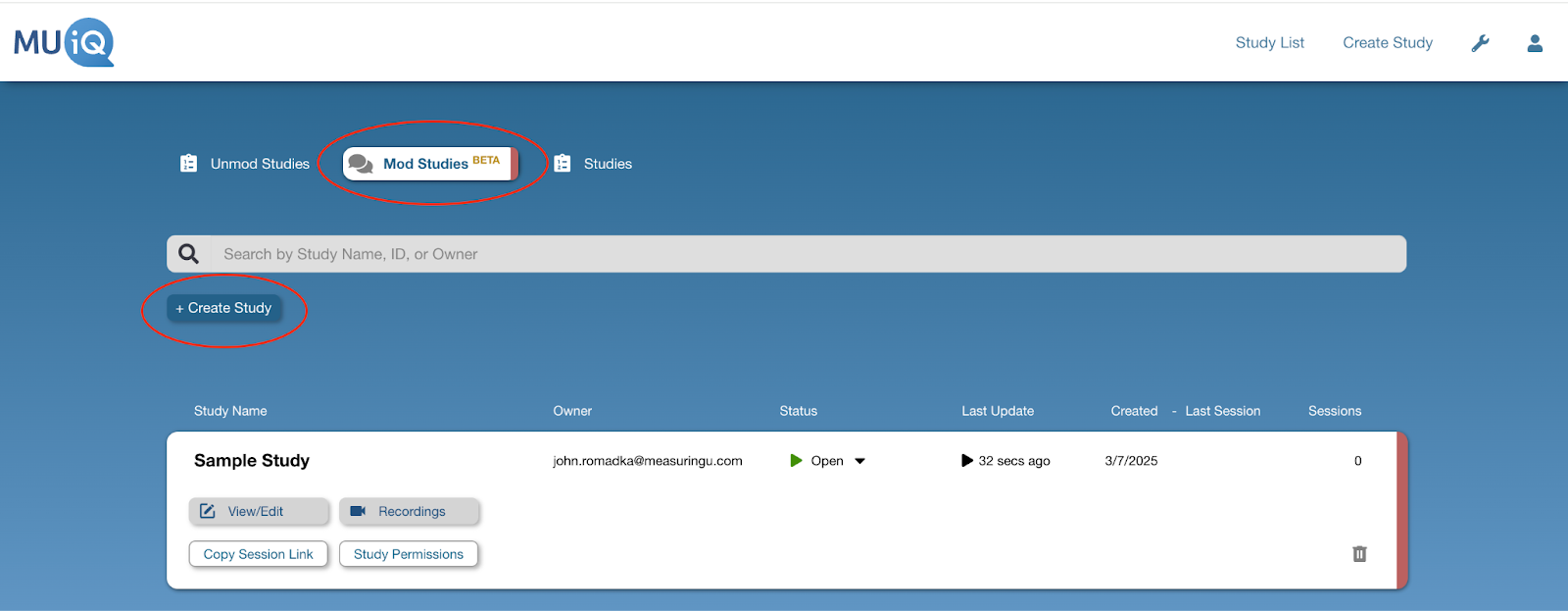

A screenshot of the MUiQ web interface displaying a list of studies. The interface has a blue background with a search bar at the top. Three elements are circled in red for emphasis:

The "Mod Studies BETA" button, indicating a beta feature for moderated studies.
The "+ Create Study" button on the left side, allowing users to start a new study.
A red-highlighted section on the right, containing a sample study titled "Sample Study," with study details such as the owner, status, last update time, creation date, and session count.



  1. Access Session Links:


Once the study is created, you will be presented with various session links: moderator link, observer link, and participant link.

  1. The moderator link can be used by the moderator at the beginning of each session.
  2. The participant link is for sharing with participants.
  3. The observer link is for hidden observers who can monitor the session without being seen by the participant. There is also a hidden observer chat that the participant cannot see.

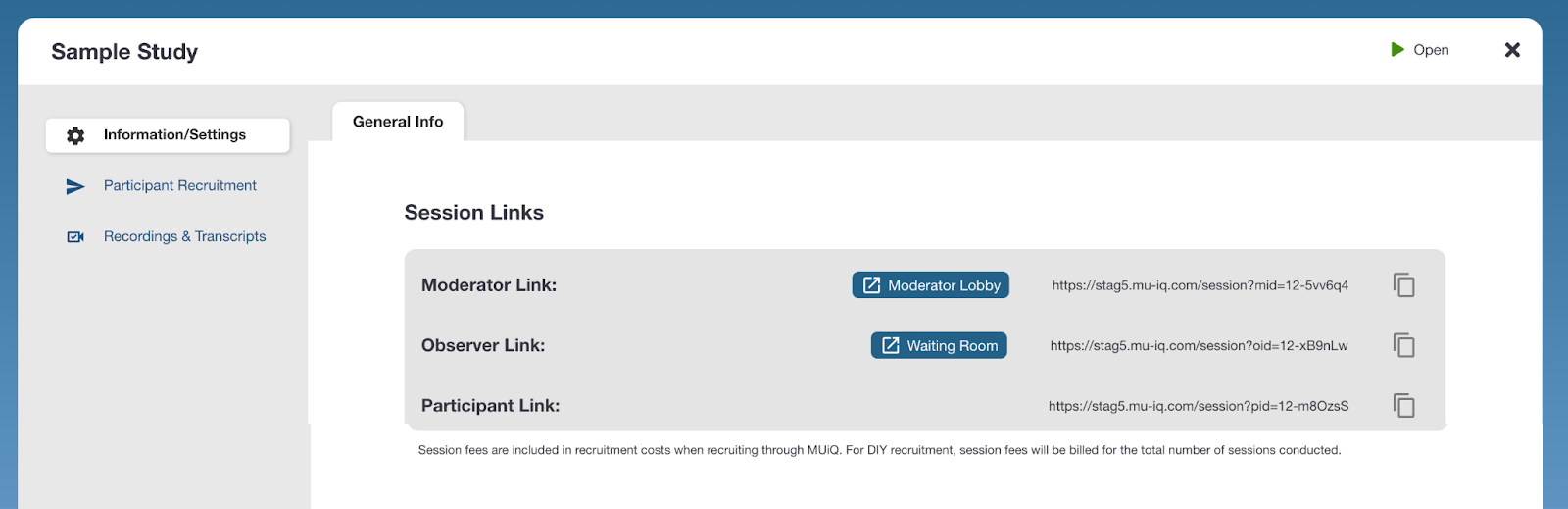

A screenshot of the "Sample Study" page in the MUiQ web interface. The page displays a section labeled "Session Links," which includes:

A Moderator Link with a button labeled "Moderator Lobby" and a corresponding URL.
An Observer Link with a button labeled "Waiting Room" and a corresponding URL.
A Participant Link with a URL.
Each link has a copy icon next to it for easy sharing. The left sidebar contains navigation options: "Information/Settings," "Participant Recruitment," and "Recordings & Transcripts." At the top right, the study status is shown as "Open" with an icon. There is also a close button in the top right corner.



  1. Configure the Moderator Lobby:


At the beginning of each session, the moderator will start in the lobby to name the session.

  1. Use the moderator link OR access the moderator lobby directly from the study to join the moderator lobby.

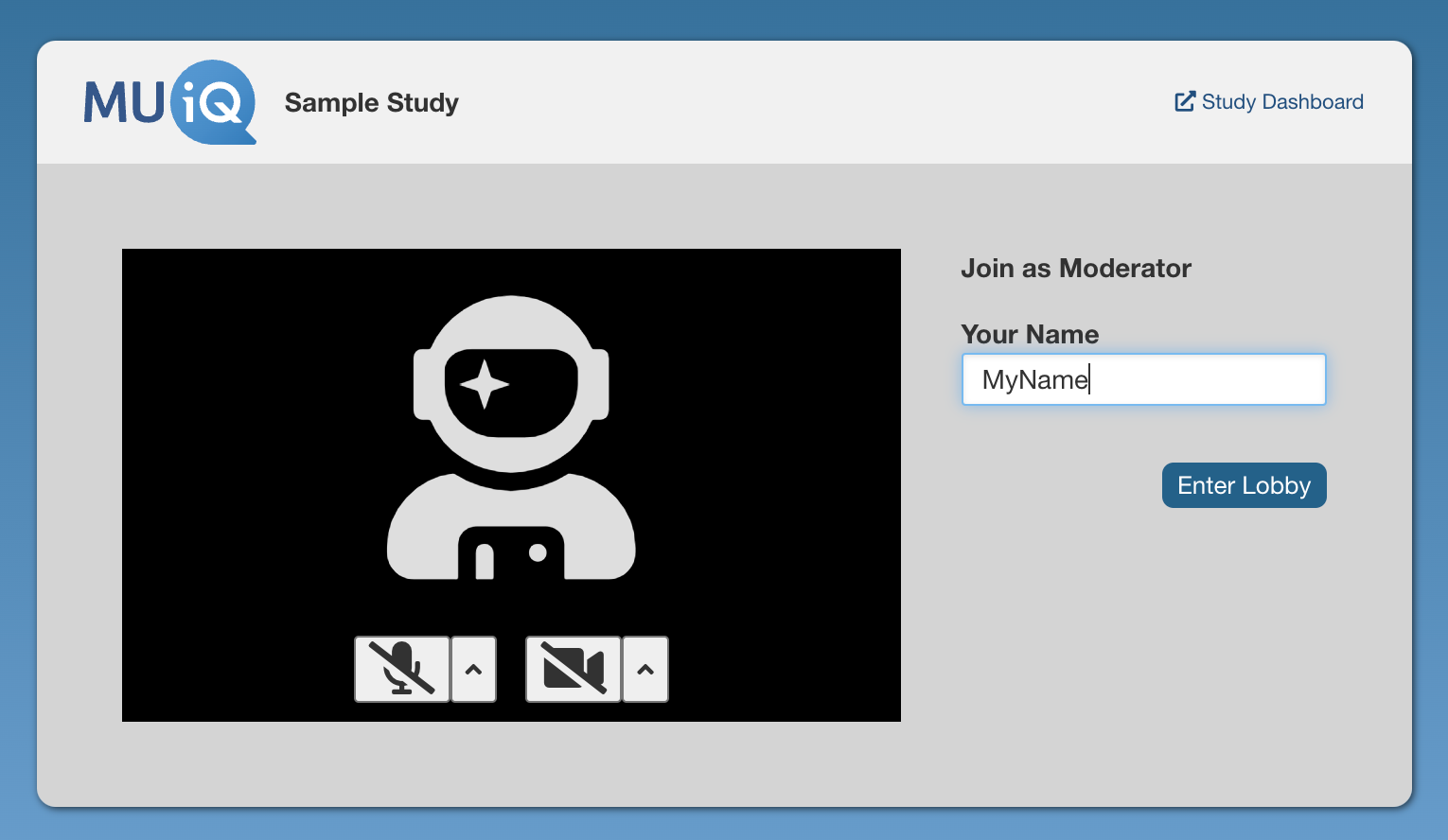

  2. In the lobby, you can test your camera and microphone, set your name, and enter the lobby to set up your moderated session.
  3. You can give your session a name and see any participants or observers waiting in the waiting room.

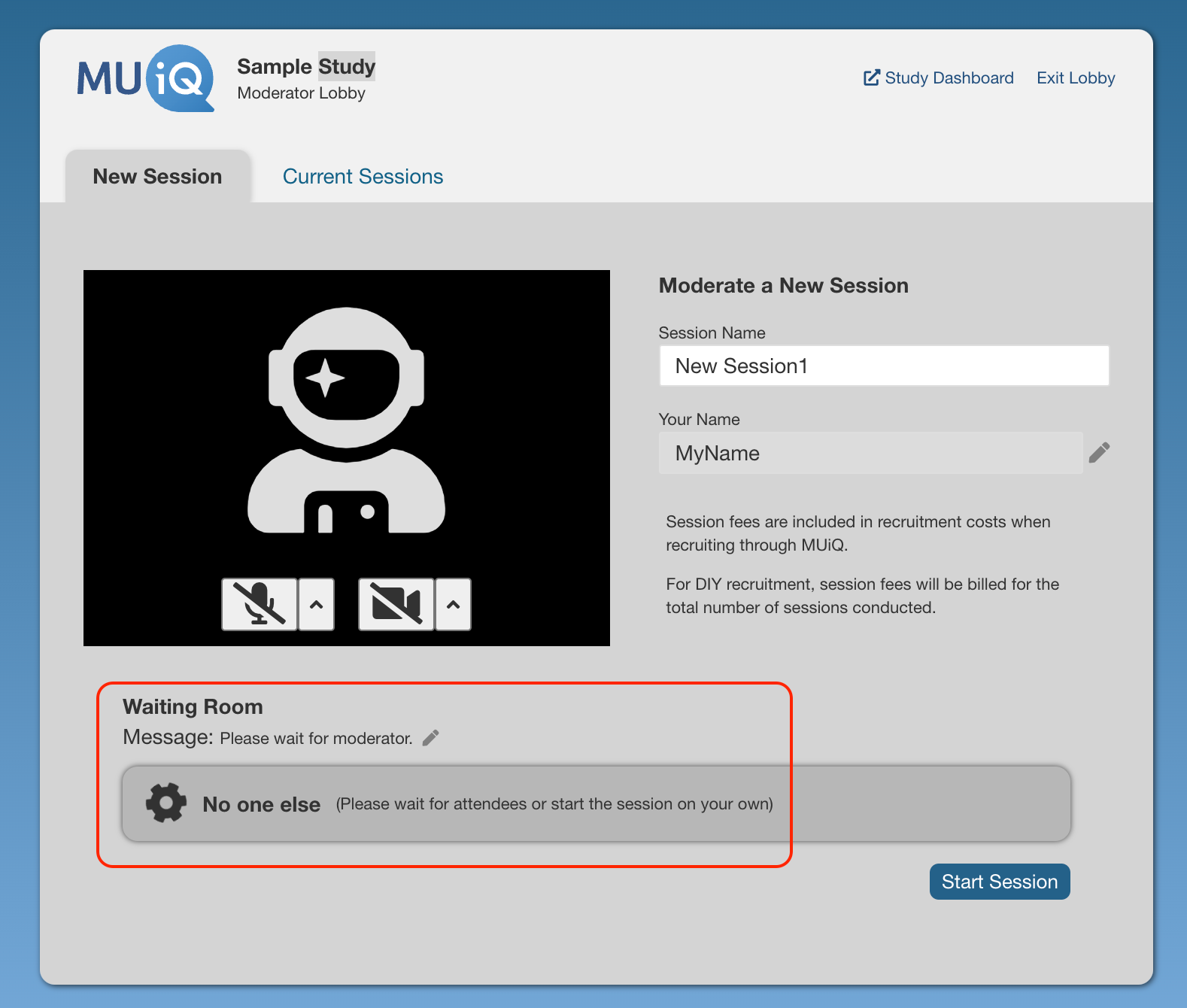

A screenshot of the "Moderator Lobby" page in the MUiQ web interface for a study session. The page has tabs labeled "New Session" and "Current Sessions." A section titled "Moderate a New Session" contains fields for entering a session name and the moderator’s name. Below this, there is a large user avatar icon with two control buttons underneath, which are circled. The buttons represent:

A microphone icon with a slash, indicating a mute/unmute control.
A camera icon with a slash, indicating a video on/off control.
Below, a "Waiting Room" section displays a message: "Please wait for moderator." A notification states, "No one else (Please wait for attendees or start the session on your own)." A "Start Session" button is at the bottom right.


A screenshot of the "Moderator Lobby" page in the MUiQ web interface for a study session. The page has tabs labeled "New Session" and "Current Sessions." A section titled "Moderate a New Session" contains fields for entering a session name and the moderator’s name. Below this, there is a large user avatar icon with two control buttons underneath, which are circled. The buttons represent:

A microphone icon with a slash, indicating a mute/unmute control.
A camera icon with a slash, indicating a video on/off control.
Below, a "Waiting Room" section displays a message: "Please wait for moderator." A notification states, "No one else (Please wait for attendees or start the session on your own)." A "Start Session" button is at the bottom right.



  1. Manage Participants and Observers:
    1. When participants and observers join, they will appear in the waiting room.
    2. You can accept them into the session as needed from the lobby. You can also accept participants and observers into the session after the session has started.



A screenshot of the "Moderator Lobby" page in the MUiQ web interface for a study session. The page has tabs labeled "New Session" and "Current Sessions." A section titled "Moderate a New Session" contains fields for entering a session name and the moderator’s name. Below this, there is a large user avatar icon with two control buttons underneath, which are circled. The buttons represent:

A microphone icon with a slash, indicating a mute/unmute control.
A camera icon with a slash, indicating a video on/off control.
Below, a "Waiting Room" section displays a message: "Please wait for moderator." A notification states, "No one else (Please wait for attendees or start the session on your own)." A "Start Session" button is at the bottom right.



  1. Conduct the Moderated Session:


During the session, you have access to several tools:

  1. Observer Chat: For communication among hidden observers, not visible to the participant.
  2. Participant Chat: To communicate directly with the participant. The participant will only see their chat bar.
  3. Screen Sharing: Moderators and Participants can share their screen,
  4. Video and Audio Controls: Moderators and Participants can manage their settings.

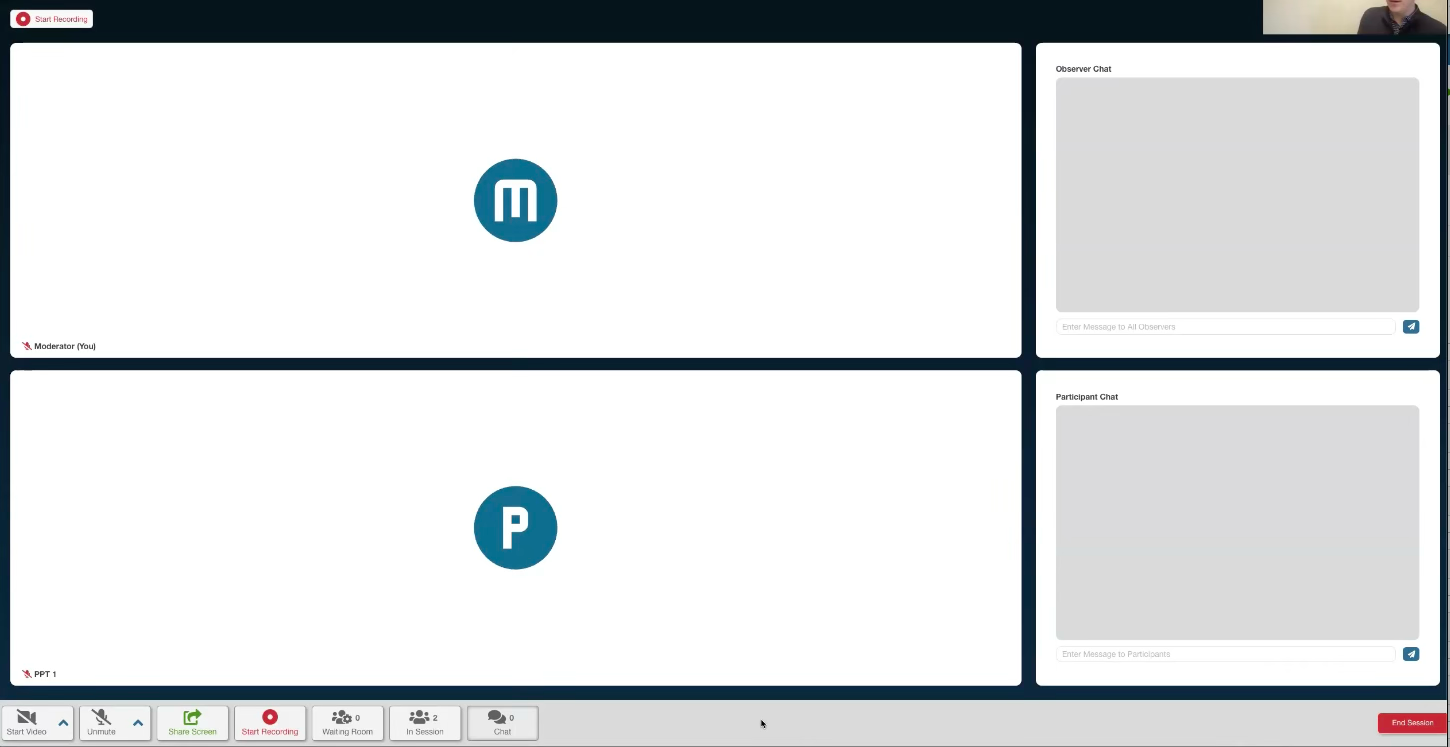

A screenshot of a virtual session interface in the MUiQ platform. The layout consists of two large video placeholders in a grid format. One placeholder is labeled "Moderator (You)" with an "M" icon, and the other is labeled "PPT 1" with a "P" icon, both indicating muted status. On the right side, there are two chat panels: one for "Observer Chat" and one for "Participant Chat," each with an input field for messaging. At the top left, a "Start Recording" button is visible. The bottom toolbar contains various session controls, including buttons for starting video, unmuting, sharing the screen, starting recording, managing the waiting room, monitoring participants in session, and accessing chat. A "End Session" button is located at the bottom right.



  1. End the Session:


Once the session is complete, select "end session". You can then re-enter the lobby for another session or exit to your study dashboard.



A screenshot of the MUiQ platform displaying a session completion message for a "Sample Study." The message states "Session Ended" followed by "Thank you for moderating." A thumbs-up icon is positioned next to the message. In the bottom right, there is a prompt asking, "Waiting for another session?" with a button labeled "Re-enter Lobby." In the top right corner, there is a "Study Dashboard" link.



  1. Access Recordings and Transcripts:


MUiQ automatically records sessions and provides transcripts.

  1. After a session, go to the "recordings and transcripts" section in your study dashboard to download them. Note that processing time may be needed before they are available.
  2. Multiple download views may be available, such as gallery view and shared screen view.

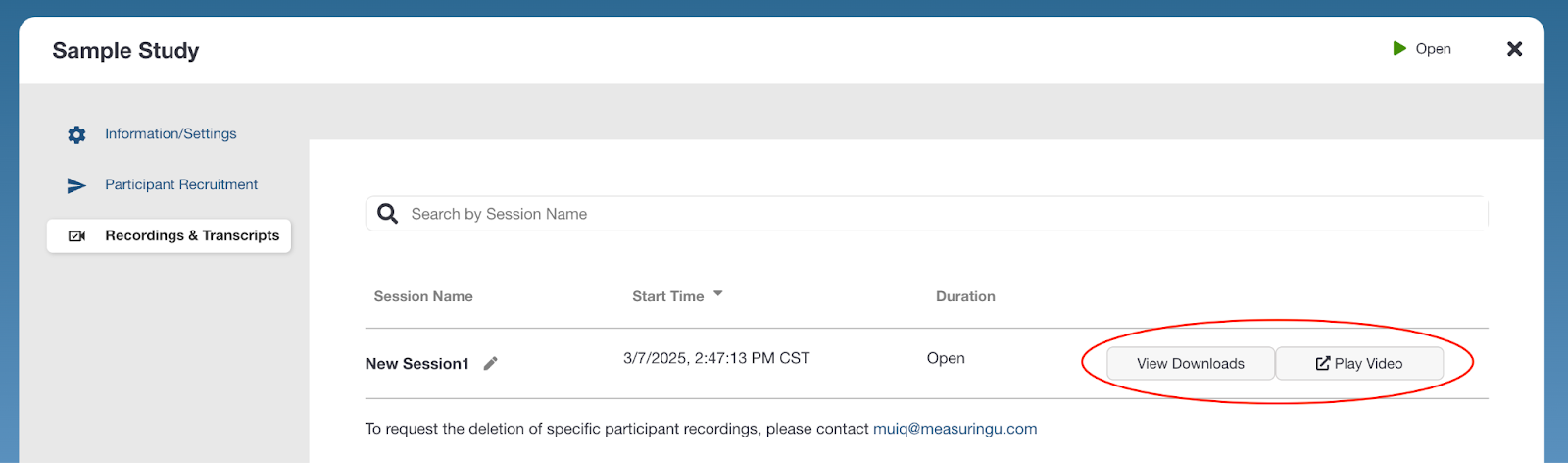

A screenshot of the "Sample Study" page in the MUiQ platform, displaying the "Recordings & Transcripts" section. A session titled "New Session1" is listed with details, including the start time, status as open, and duration. The session has two action buttons, which are circled:

"View Downloads" button for accessing session-related files.
"Play Video" button for watching the session recording.
On the left, a sidebar contains navigation options: "Information/Settings," "Participant Recruitment," and "Recordings & Transcripts." At the top right, the study status is marked as "Open", with a close button next to it.

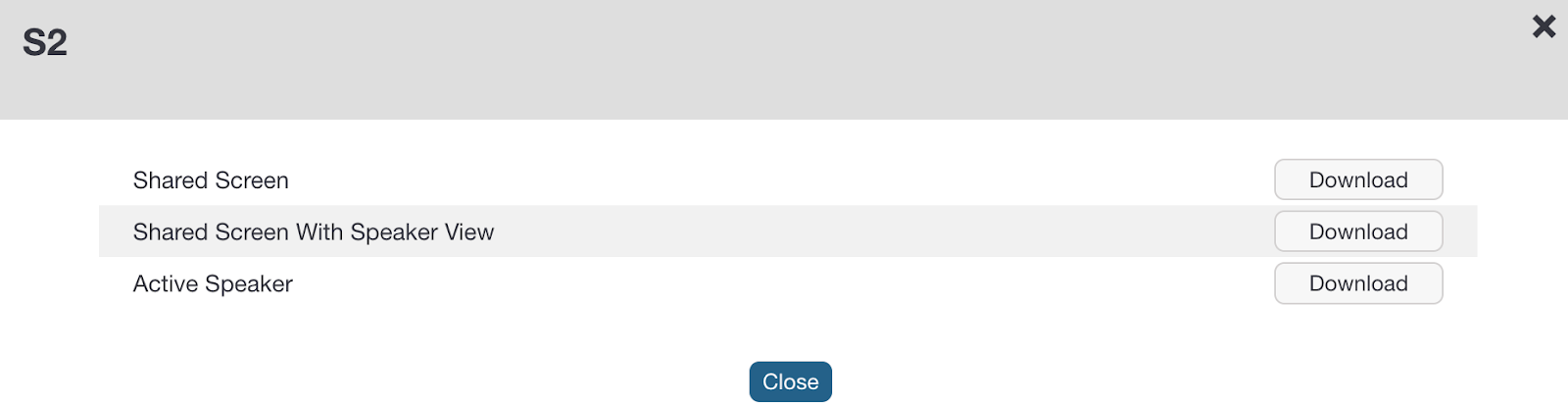

A screenshot of a download modal window labeled "S2" in the MUiQ platform. The window lists three recording options:

Shared Screen
Shared Screen With Speaker View
Active Speaker
Each option has a corresponding "Download" button on the right. At the bottom, there is a "Close" button to exit the window. A close icon is located in the top right corner.



  1. Recruit Participants for Moderated Studies:

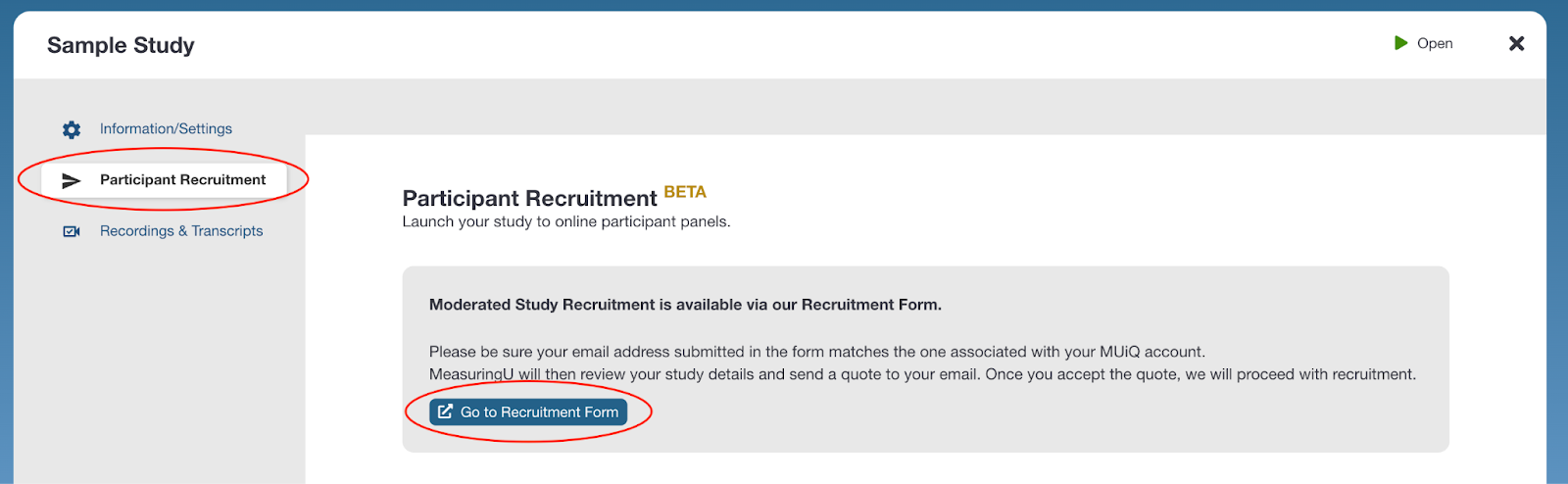

To recruit participants using MUiQ's services, you need to fill out the Participant Recruitment form in the left menu. This will be sent to the operations team who will handle the recruitment process.

  1. Ensure you clearly outline the target participant criteria when requesting recruitment.
