This guide will walk you through how to set up an A|B study

A/B testing is a valuable tool for comparing two versions of a product, such as different website layouts or app designs. This guide will walk you through the minimum steps to create an A/B study in MUIQ.

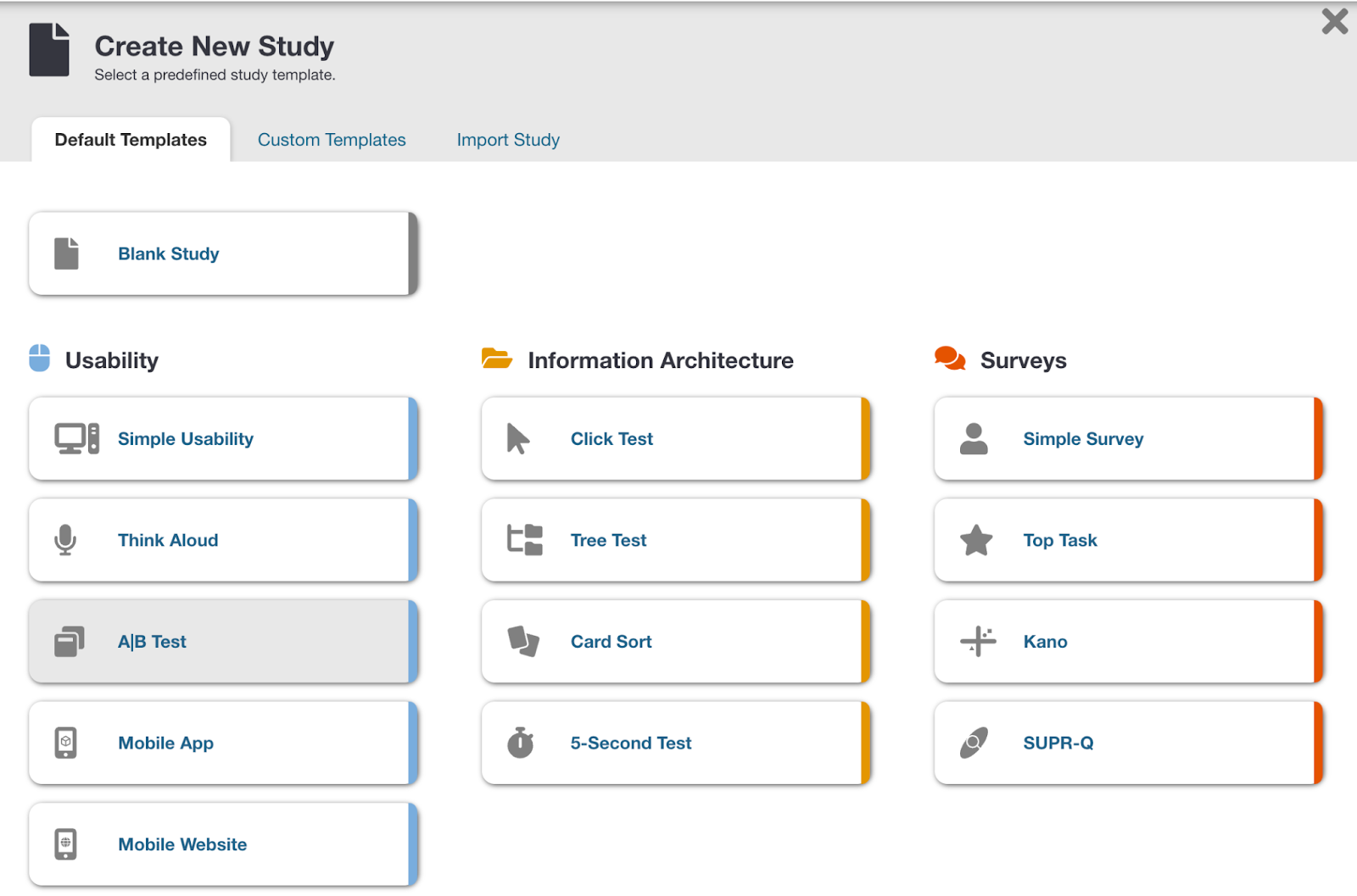

Choose the Study Type

• Navigate to the Usability section in the study creation dashboard.

• Select the A/B Test option.

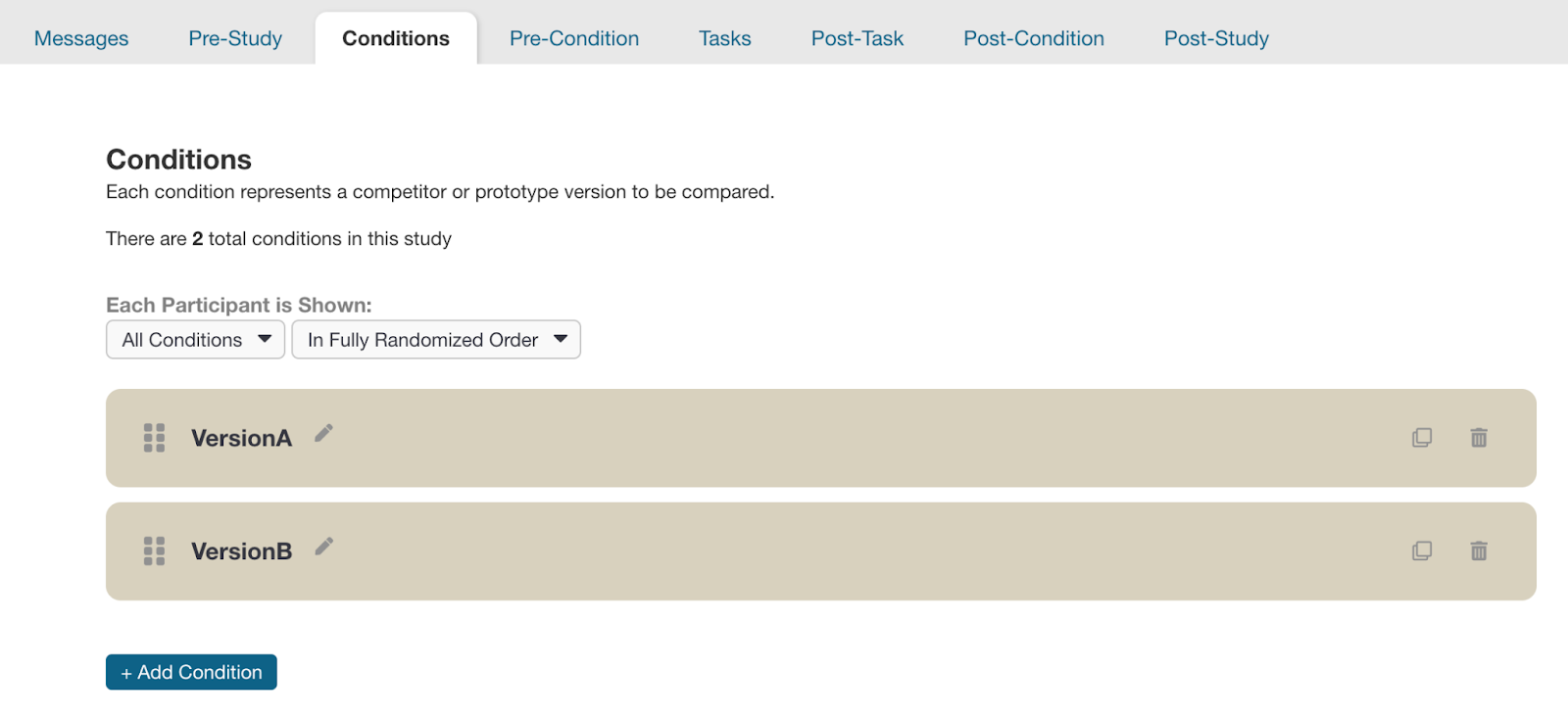

Define Your Conditions

• Go to the Conditions tab.

• The study is pre-set with two conditions (e.g., “Version A” and “Version B”).

  • Optional: Click “+” to Add Conditions :

• Define what and how the conditions will be shown to participants.

  • Choose either:

    • “All Conditions” if participants will see both versions. (default)

    • “One Condition” or “One Fixed Condition and Another at Random” for specific testing scenarios.

• Specify the condition order. Choose either:

  • Fully Randomized (default)

  • Listed Order

Set Up Tasks

1. Open the Tasks tab to create the activities participants will complete.

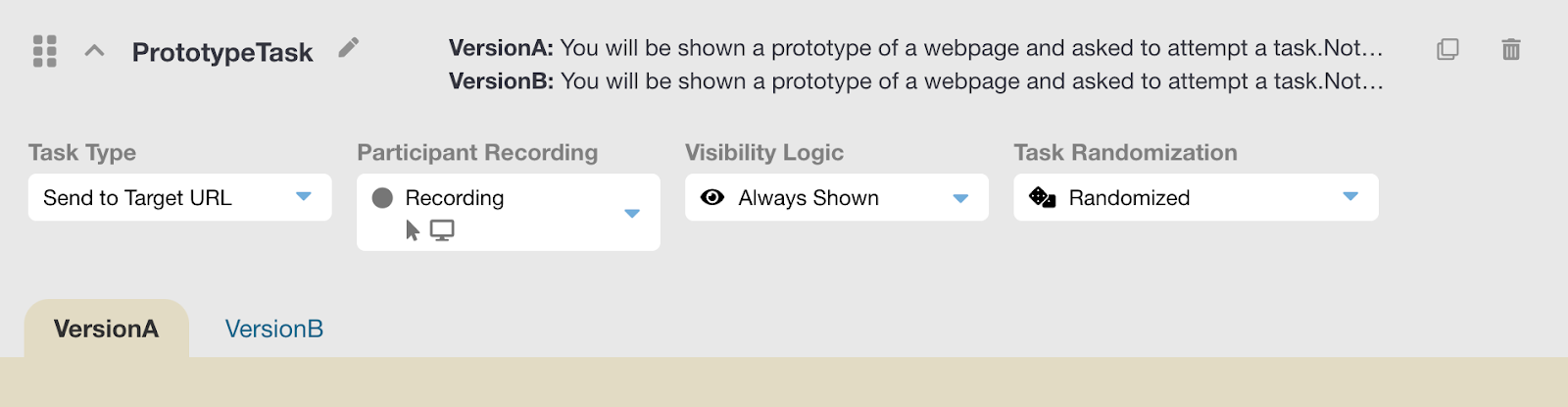

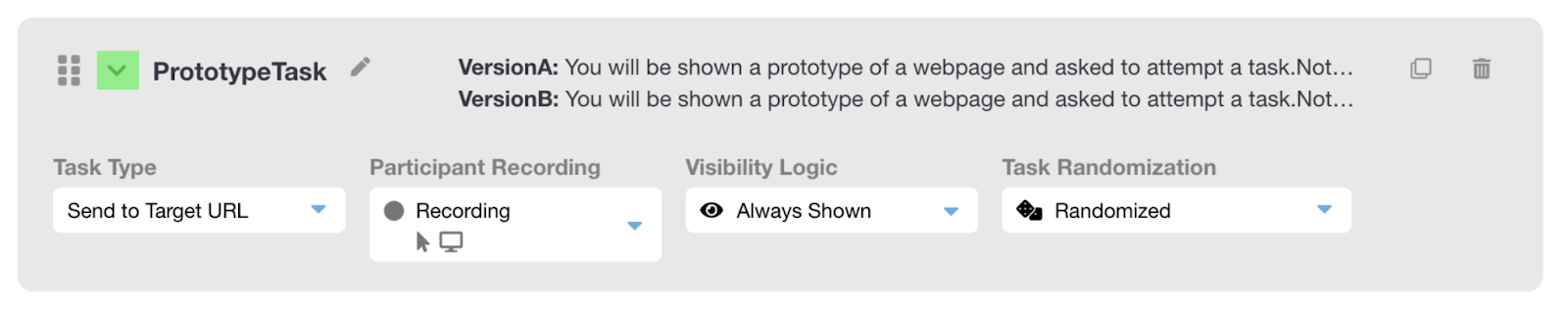

2. Expand the Prototype Task to display configuration options for both Version A and Version B.

• Click the downward arrow icon to the left of the Task Title (e.g., Prototype Task”). This will expand the task details.

3. Version A:

   • Enter Pre-task Text instructions in the Text editor to provide Scenario/Context:

     • Provide the participant with a scenario and any necessary information to complete the study tasks. This information should be presented in the goal-oriented language of a typical user of your product.

• Provide concise instructions for each task, including the task itself and the desired endpoint.

  • If using a Task Validation Question, remind participants to make note of the answer for a follow-up question.

  • If it’s a think-aloud task, specify what aspects of the interface or prototype you’d like the participant to comment on.

• Enter In-Task Text instructions in the Text editor:

  • This should be an abbreviated version of your Pre-Task instructions.

  • Typically, it does not need to repeat the Context/Scenario.

  • Should include only the essential information to complete the task.

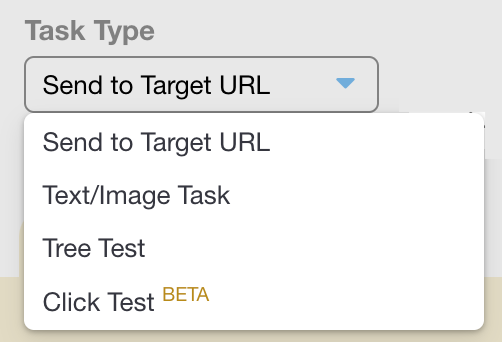

• Specify the Task Type, select either:

  • Send to Target URL

    • Input the URL (e.g., Figma)  for each condition under “Task Target URL.”

  • Text/Image Task (e.g., screenshot)

• If using URL Task Type, enter the URL (e.g., Figma).

• Participant Recording Options:

  • No Recording: No screen or interaction recordings are collected.

  • Screen Recording (Default): Records URLs, clicks, and the participant’s screen.

  • Privacy Blur: Blurs sensitive information and all screen text while still capturing interaction data.

  • Think Aloud Recording: Records URLs, clicks, screen, and audio (microphone input). Note: May require extra task instructions and could increase dropout rates.

  • Custom: Allows customized recording settings

❗Ensure you pilot test the study thoroughly and review the results. Heat and click maps may not render correctly in some cases.

• Manage Participant Logic:

  • Choose how tasks will be assigned:

    • Use Visibility Logic to determine when tasks appear.

      • Always Shown (default)

      • Only shown if…

  • Task Randomization order will minimize bias:

    • Randomized (default)

    • Fixed in position

4. Version B: (Repeat Step 3)



5. Review and Finalize

• Confirm that all tasks and conditions are configured correctly.

• Preview the study using the Generate Preview option in the top (right) menu.

• Once satisfied, click Activate Study to launch.

Key Tips for Success

• Use task randomization to reduce participant bias.

• Double-check condition URLs for accuracy.

• Test the study workflow thoroughly before activation.
