This guide explains how to use the Crosstabs feature in MUiQ.

A crosstab report can show if there’s a connection between two or more questions from a study.

❗Please note that these graphs are currently built on a custom basis and will not save in the interface. Therefore, please export your results before closing the platform.

How to Generate a Crosstab in MUiQ

The Crosstabs feature in MUiQ allows you to compare study variables to uncover deeper insights from participant responses. For example, you might want to see the relationship between task success and a participant's past experience.

1. Navigate to Study Results

• Open your completed study in MUiQ.

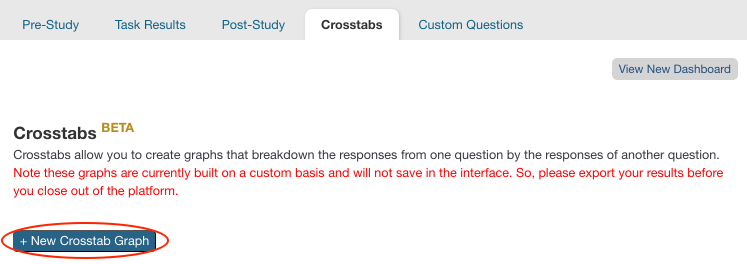

• Click on the Crosstabs tab in the top navigation bar.
• Select New Crosstab Graph

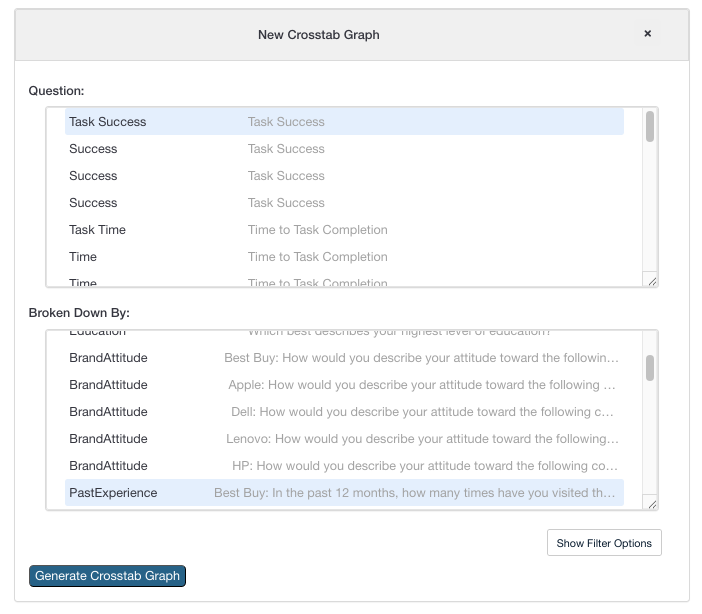

2. Select Your Variables

• In the New Crosstab Graph, select the (independent variable) in the “Question:” block (e.g., Task Success).
• Next, select the (dependent variable) the “Broken Down By:” block.
  (e.g., Past Experience).

3. Generate the Crosstab Chart

• Click the Generate Crosstab Chart button.

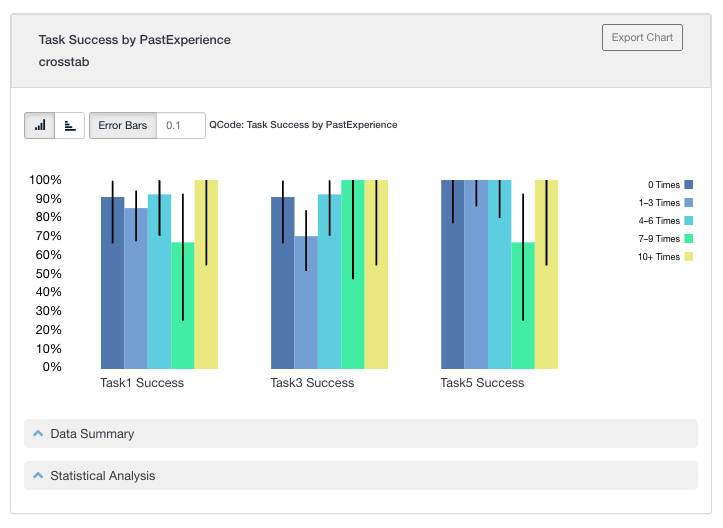

• MUiQ will display a chart showing the relationship between the two selected variables. (e.g., relationship between task success and a participant's past experience.)
• You will also be able to view the Data Summary and Statistical Analysis tables.

❗Remember to export your results before closing the platform, as these graphs are custom-built and do not save automatically.
